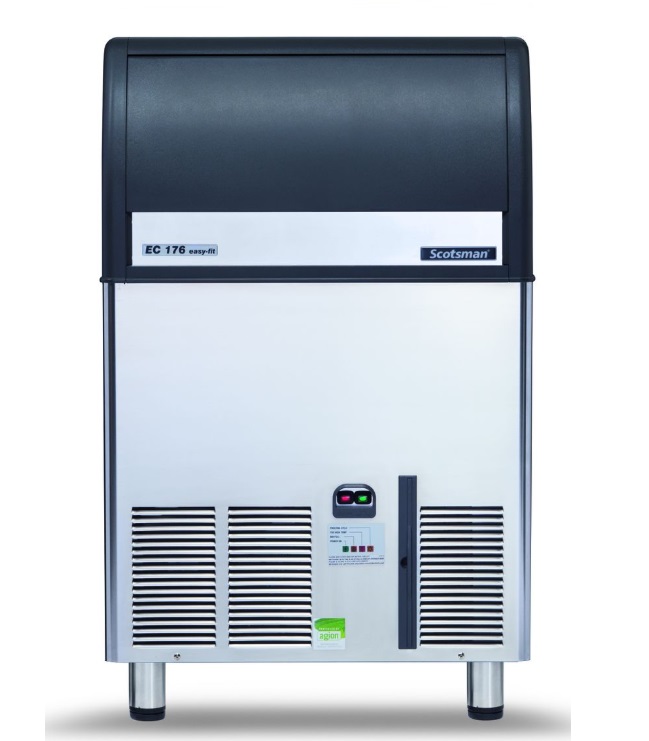

EC176 – Scotsman Gourmet Ice Machine

Advanced Technologies:

• PWD – Progressive Water Discharge: Pumps excess water up to 1.5m high and 15m away.
• Agion Antimicrobial Protection: Provides continuous 24/7 resistance against microbes, reducing unpleasant odors and enhancing longevity.
• Clean Alert: Notifies when filter cleaning is required.
• Front Access Condenser Air Filter: DIY cleaning for extended machine lifespan and cost savings.
• Individual Transparent Solid Cubes: Crystal-clear, perfectly shaped cubes in line with Scotsman’s tradition.
• Scale Accumulation Prevention: Captures and neutralizes scale buildup, prolonging machine life.
• Ergonomic Sliding Door: One-touch lift for effortless ice access.
• Built-in Storage Bin: Ideal for under-counter installations.

Scotsman XSafe Technology:

A fully integrated sanitation system that operates 24/7, eliminating over 99% of known viruses and bacteria. It also reduces mold, mildew, yeast, and slime buildup, preventing odors and ensuring clean ice production.

Gourmet Ice Cube Specifications:

• Size: 20g | Ø 30mm | H 34mm
• Properties: Crystal clear, pure, hard, and long-lasting
• Performance: Fast cooling with slow dilution to keep drinks chilled longer

Installation Requirements:

• Water Inlet Valve: 1-inch male thread, within 1 meter
• Drainage: Standard 1.5-meter drain pipe to a ground-level drain point
• Ventilation: Must be placed in a cool, well-ventilated area (not inside a closed cupboard)
• Power Supply: 220V, within 1 meter

What’s in the Box?

• 1 × Scotsman Ice Machine EC176/177 (85kg/24h)
• 1 × Water Inlet Pipe
• 1 × Water Outlet Pipe
• 1 × Medium Plastic Scoop
• 1 × User Manual (AC/EC Series – Electronic)
• 4 × Metal Legs
• 1 × Scotsman Warranty Copy
